This bike is the evolution of the award-winning XF1 Integra 180. It symbolizes Fantic's DNA but with more performance and higher reliability. The new aluminum Enduro frame and performance components combine to create this Enduro EMTB the TOP of the range benchmark for this market segment.
POWER UNIT

Installed on the XEF1.8 Sport is the Brose S Mag motor, designed for the most competitive riders. In addition to power, the motor's key points of strength are silence and fluidity of pedaling. The 720 Wh battery features long life even when subjected to high stress.

More info.

SPECS

Scroll and discover the details of XEF 1.8 Sport

Specifications
Motor: Brose S-MAG 36 Volt, Max power: 250 Watt, Torque/Coppia: 90 Nm
Battery : Fantic Integra, Lithium Ion, 36 Volt, 720Wh
Display: Brose Remote multifunctional & push-assistance selection unit
Frame: Aluminum, Sizes: S - M - L
Fork (*): RockShox DOMAIN-R e-bike - 29" 180mm
Shock (*): RockShox SuperDeluxe Coil Select+ T205x65
Chain rings: Sram 34t Steel Eagle
Crank arm (*): FSA CK-320/ISIS - 155mm
Rear derailleur: Sram NX Eagle 12V
Shift Levers: Sram NX E-click
Cassette: Sram SX Eagle 12V, 11-50
Chain (*): Sram NX Eagle 12V
Brake (front): Sram Code R 4 Piston disc brake
Brake (rear): Sram Code R 4 Piston disc brake
Disc (front) (*): Braking S3 Battfly, 220mm - 6Hole
Disc (rear) (*): Braking S3 Battfly, 203mm - 6Hole
Tires (front): Vittoria E-MAZZA 29"x 2.6
Tires (rear): Vittoria E-MARTELLO 27,5"x 2.8
Wheels (*): MAVIC E-DEEMAX F 29" - R 27.5"
Handlebar (*): FSA COMET Ø35 Rise 25 800mm / STEM-ZOOM-35MM-ø35
Stem (*): FSA GRID 50mm-35 RISE6°
Seatpost (*): SWITCH SW Ø 30.9 S-M(100mm), L(125mm)
Saddle: Selle Italia MODEL-X Comfort Superflow 145
(*)Note: *FANTIC MOTOR reserves the right to modify technical caracteristics without prior notice. All images are included for illustrative purposes. Products are subject to change.

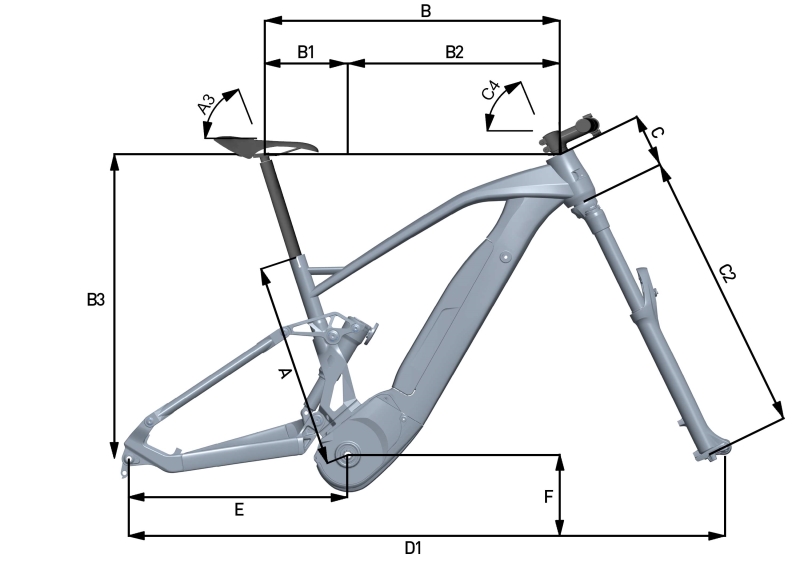

Sizing & Tech
geometrie
S
M
L
A [mm]
390
430
470
B [mm]
590
620
650
E [mm]
459
459
459
F[mm]
364
364
364
D1 [mm]
1226
1256
1281
B2 [mm]
414
443
469
B1 [mm]
175,5
177
181
C2 [mm]
596
596
596
C [mm]
105
110
120
A3 [deg]
72
72
72
C4 [deg]
64
64
64,5
