Long rides, rough roads, urban streets. Versatile hardtail with aluminium frame. A great mix of handling, efficiency and speed.
POWER UNIT

Brose ALU 36 Volt, Max power: 250 Watt.

SPECS
Specifications
Motor: Brose ALU T 36 Volt, Max power: 250 Watt, Torque/Coppia: 70 Nm
Battery : Fantic Integra, Lithium Ion, 36 Volt, 630Wh
Display: Brose-Marquardt multifunctional display & push-assistance selection unit
Frame: Aluminium frame, CNC parts, Sizes: S - M - L
Fork : RockShox Recon RL, 120mm travel
Groupset: SRAM SX E-click Eagle12v
Crankset : MirandaDelta Isis 165mm Asym
Cassette: Sram SX Eagle 12V 11-50
Chain: Sram SX Eagle 12V
Front brake: Sram LEVEL 2 Piston, Hydraulic Disc Brake, 200mm disc
Rear brake: Sram LEVEL 2 Piston, Hydraulic Disc Brake, 180mm disc
Tires : Schwalbe SMART-SAM, front 29’’x 2.25” / Rear 27.5” x 2.6”
Wheels : GMP by Fantic, Tubeless ready
Front hub : GPM N28, 110mm, boost, thru axle 15mm
Rear hub : GPM N33, 148mm, boost, thru axle 12mm
Handlebar: FSA Ø31,8 L.760m Rise15
Stem: FSA Ø31,8 L.60mm
Seatpost : FSA 400mm
Saddle: SelleItalia X-Land Flow
NOTE(*): *FANTIC MOTOR reserves the right to modify technical caracteristics without prior notice. All images are included for illustrative purposes. Products are subject to change.

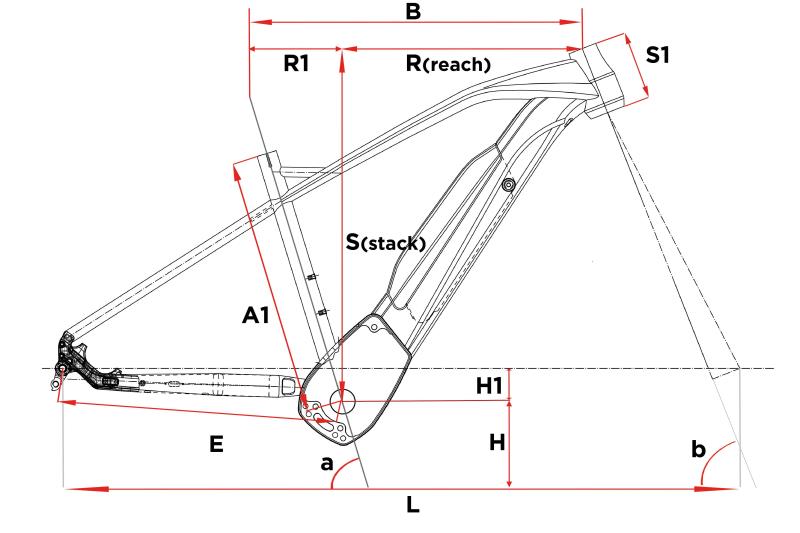

Sizing & Tech
geometrie
S
M
L
A1[mm]
410
450
490
B[mm]
580
605
630
E[mm]
468
468
468
H[mm]
312
312
312
H1[mm]
52
52
52
L[mm]
1151
1160
1168
R[mm]
403
413
418
R1[mm]
177
192
212
S[mm]
615.5
627.5
653
S1[mm]
110
120
145
74
73
72
68
68.5
69
