Unmatched fun on each trail. The carbon frame model has a lightweight and superior reactivity behavior. Besides the power, the motor's strengths are its quietness and smoothness pedalling even when the motor is off.
POWER UNIT

Installed on the XTF 1.6 CARBON RACE is the NEW BROSE S MAG MOTOR, designed for the most competitive riders. THE BEST ELECTRIC MOTOR FOR E-MTB OF 2019 (*) Its compactness, low weight (only 2.8kg), instant power and more control on steep terrain, no pedaling resistance even with the motor off. Extremely quiet with no vibrations and a maximum torque of 90Nm (the best performing on the market).

SPECS

Scroll and enjoy the specs of the XTF 1.6 Carbon Race.

Specifications
Motor: Brose S-Mag 36, Torque/Coppia: 90 Nm
Battery : Fantic, Lithium Ion, 36 Volt, 720Wh
Display: Brose All Round
Frame: Carbon, Sizes: S-M-L-XL
Fork : RockShox Lirik Select 160mm
Shock : RockShox Deluxe Select+
Chain rings: Sram 34t
Crank arm : FSA
Rear derailleur: Sram GX AXS Eagle
Shift Levers: Sram GX AXS
Cassette: SunRace SilverRed, 12V, 11-51
Chain : Sram SX
Brake : Sram G2 RS 4 Piston disc brake
Brake : Sram G2 RS 4 Piston disc brake
Disc : Braking S3 Batfly, 203mm - 6Hole
Disc : Braking S3 Batfly, 180mm - 6Hole
Tires : Pirelli SCORPION ProWall Trail -M- 29"x 2.4
Tires : Pirelli SCORPION ProWall Trail -R- 29"x 2.4
Wheels : FSA i29 Carbon 29"
Handlebar : FANTIC RACING Carbon Ø31,8 Rise 25, 760mm
Stem : FSA NS ICR 10°AO 70mm Ø31,8
Seatpost : Switch SW Ø 30.9
Saddle: Selle Italia Novus Boost X-CROSS Superflow
Note (*): FANTIC MOTOR reserves the right to modify technical caracteristics without prior notice. All images are included for illustrative purposes. Products are subject to change.

See more



Sizing & Tech

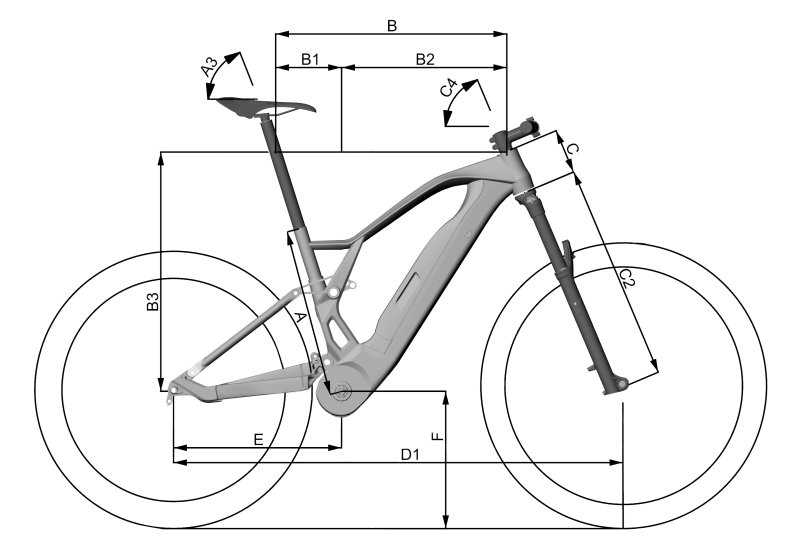

geometrie
S
M
L
XL
A [mm]
390
430
469
510
B [mm]
575
596
628
655
E [mm]
456
456
456
456
F[mm]
362,5
362,5
362,5
362,5
D1 [mm]
1188
1204
1238
1260
B3 [mm]
608,0
615,1
628,9
645,5
B2 [mm]
419
438
466
488
B1 [mm]
156
158
162
167
C2 [mm]
568
568
568
568
C [mm]
100
105
120
135
A3 [deg]
73
73
73
73
C4 [deg]
66
66,5
66,5
67
Consult our technical data Contact our dealers BROCHURE
