The lightest trail bike on the market with a 720 Wh battery and a 90 Nm motor. 19.9 kg. Unrivalled handling and agility, endless battery life will allow you to climb and have fun. And repeat as many time as you can.
POWER UNIT

The XTF 1.6 CARBON FACTORY is equipped with the NEW BROSE S MAG MOTOR, designed for the most competitive riders. THE BEST ELECTRIC MOTOR FOR E-MTB OF 2019 (*) Its compactness, low weight (only 2.8kg), instant power and more control on steep terrain, no pedaling resistance even with the motor off. Extremely quiet with no vibrations and a maximum torque of 90Nm (the best performing on the market).

SPECS

Scroll and enjoy the specs of the XTF 1.6 Carbon Factory.

Specifications
Motor: Brose S-Mag 36, Torque/Coppia: 90 Nm
Battery : Fantic, Lithium Ion, 36 Volt, 720Wh
Display: Brose All Round
Frame: Carbon, Sizes: S-M-L-XL
Fork : RockShox Lyrik Ultimate 160mm
Shock : RockShox Deluxe Ultimate
Chain rings: Sram 34t
Crank arm : FSA Carbon
Rear derailleur: Sram XX1 AXS Eagle
Shift Levers: Sram XX1 AXS
Cassette: Sram X-Glide Rainbow, 12V, 10-52
Chain : Sram
Brake : Magura MT Trail Sport 4 Piston disc brake
Brake : Magura MT Trail Sport 4 Piston disc brake
Disc : Braking S3 Battfly, 203mm - 6Hole
Disc : Braking S3 Battfly, 180mm - 6Hole
Tires : Pirelli SCORPION ProWall Trail -M- 29"x 2.4
Tires : Pirelli SCORPION ProWall Trail -R- 29"x 2.4
Wheels : FSA KFX Carbon 29"
Handlebar : FANTIC RACING INTEGRATED FLAT-17°, 780mm
Stem : nd /na
Seatpost : Rock Shox Reverb AXS Ø30.9
Saddle: Selle Italia SLR Boost Superflow
Note(*): FANTIC MOTOR reserves the right to modify technical caracteristics without prior notice. All images are included for illustrative purposes. Products are subject to change.

See more

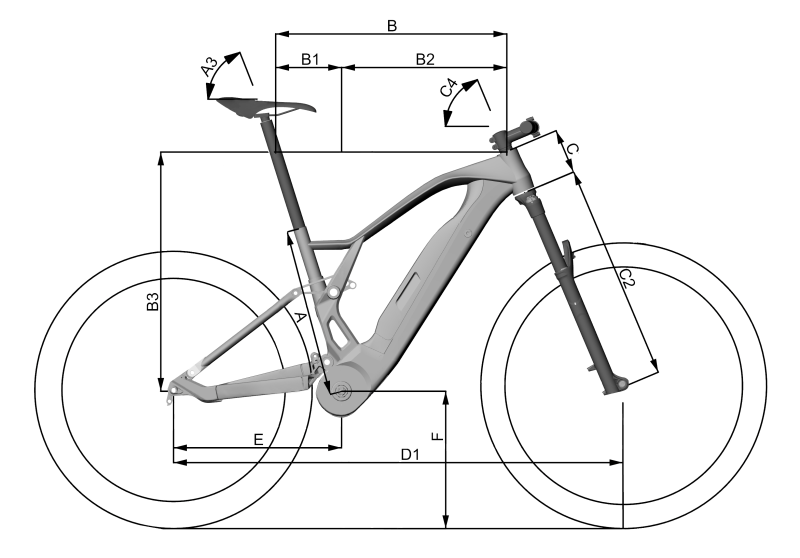

Sizing & Tech
geometrie
S
M
L
XL
A [mm]
390
430
469
510
B [mm]
575
596
628
655
E [mm]
456
456
456
456
F[mm]
362,5
362,5
362,5
362,5
D1 [mm]
1188
1204
1238
1260
B3 [mm]
608,0
615,1
628,9
645,5
B2 [mm]
419
438
466
488
B1 [mm]
156
158
162
167
C2 [mm]
568
568
568
568
C [mm]
100
105
120
135
A3 [deg]
73
73
73
73
C4 [deg]
66
66,5
66,5
67
Consult our technical data Contact our dealers BROCHURE
